Denso Pole Treatment

Transmission Pole

Corrocote Repair

http://www.denso.net/densotape/index.htm

Damaged Corrocote
  • Poor Adhesion of Factory Corrocote
  • Potential Corrosion
  • Limited Life of Structure


Excavation of Stucture
  • Removal of dirt around structure
  • Remove lose Corrocote
  • Recommended dept of 18"
  • Remove all debris to required depth

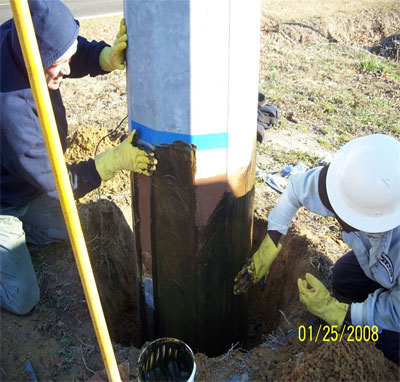

Application of Denso Paste
  • Measure 18" above ground line
  • Tape off struction
  • Apply Denso Paste to Structure
  • Spread evenly around entire Structure

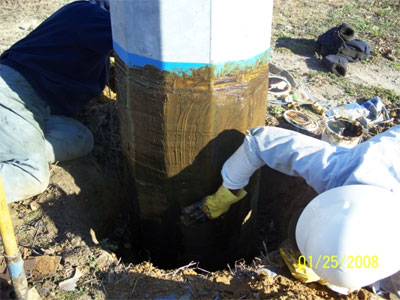

Application of Denso Wrap
  • Apply 6" Denso Wrap over applied paste
  • Double wrapping Tape
  • Wrap from bottom to top 18" below ground line to 18" above ground line
  • Cover existing Corrocote (up to 6' above ground if necessary)

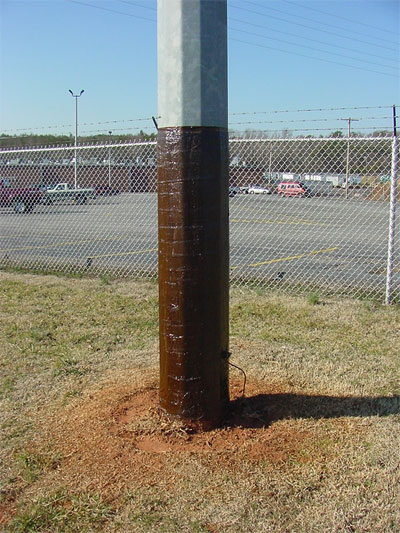

Finish Coat - Denso Paste
  • Apply finish coat of Denso Paste
  • Seals wrap
  • Water tight seal
  • Remove tape
  • Back fill and tamp hole
  • Clean up site
